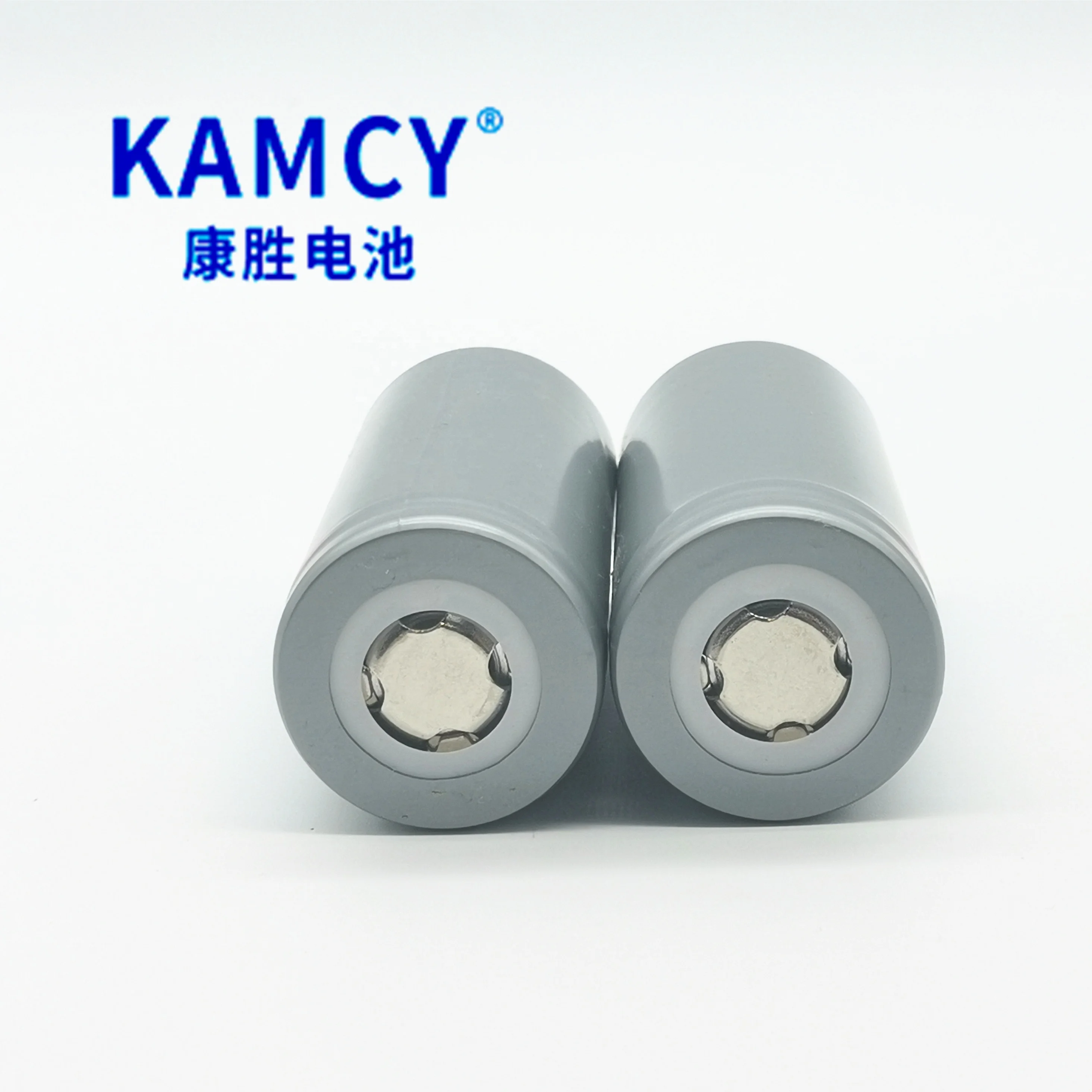

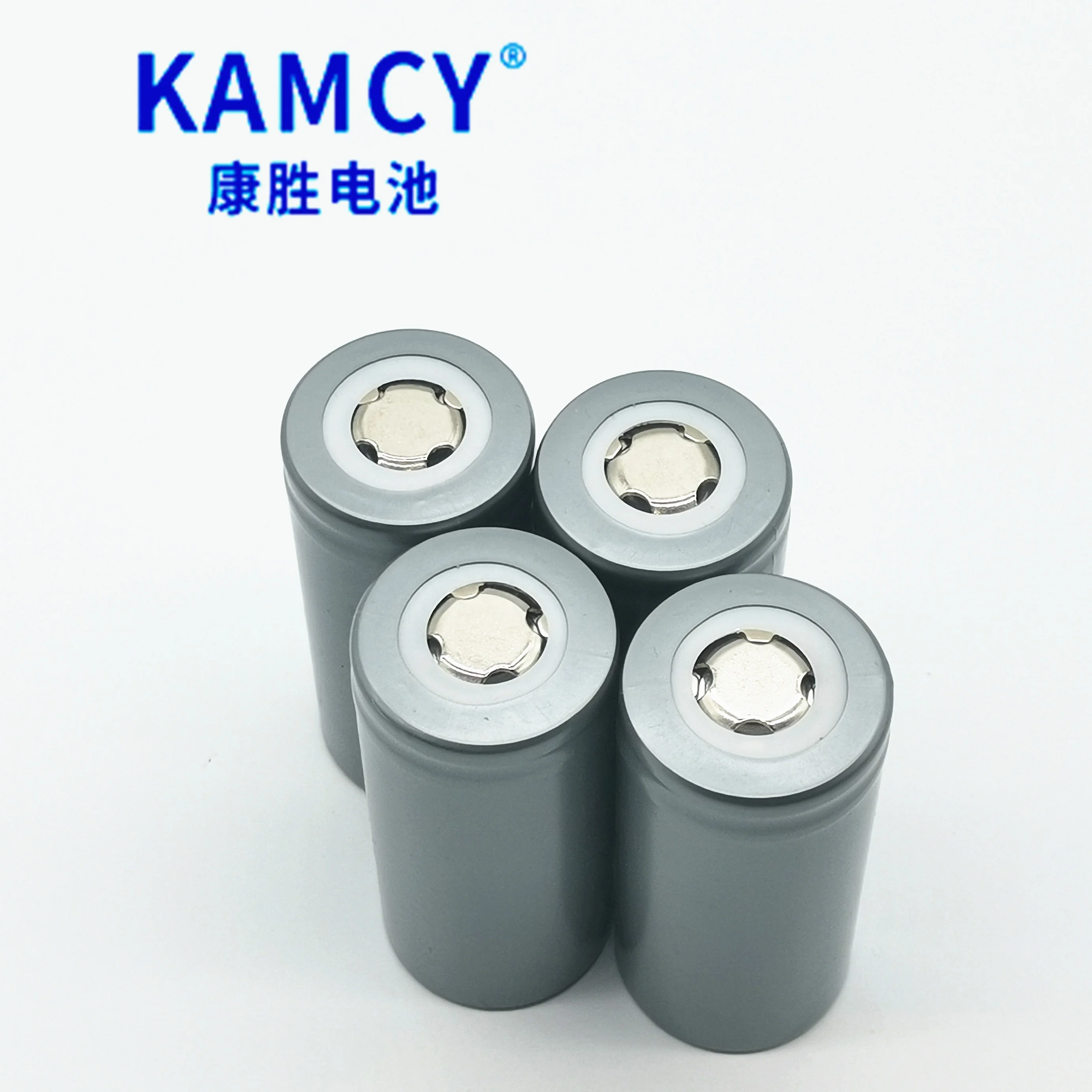

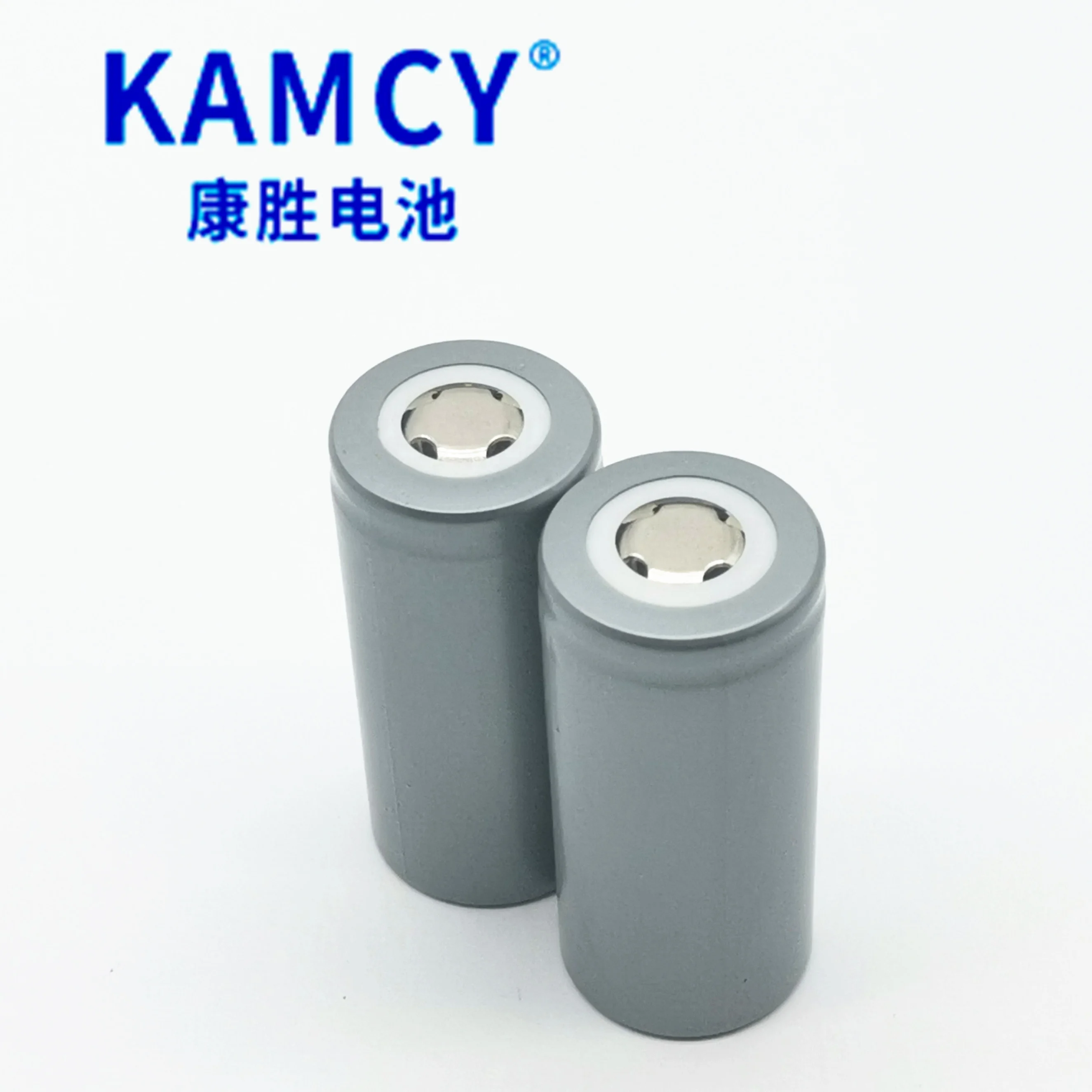

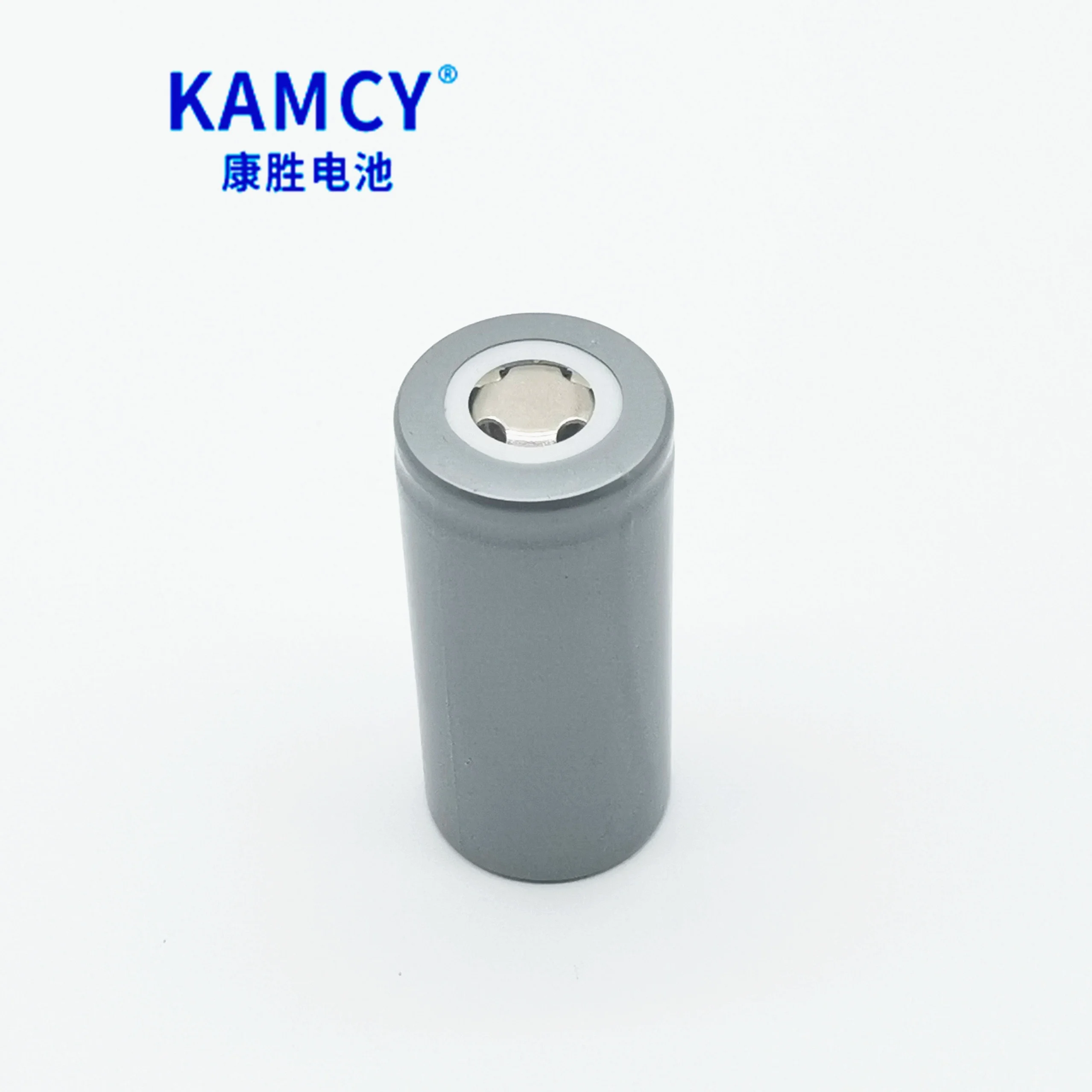

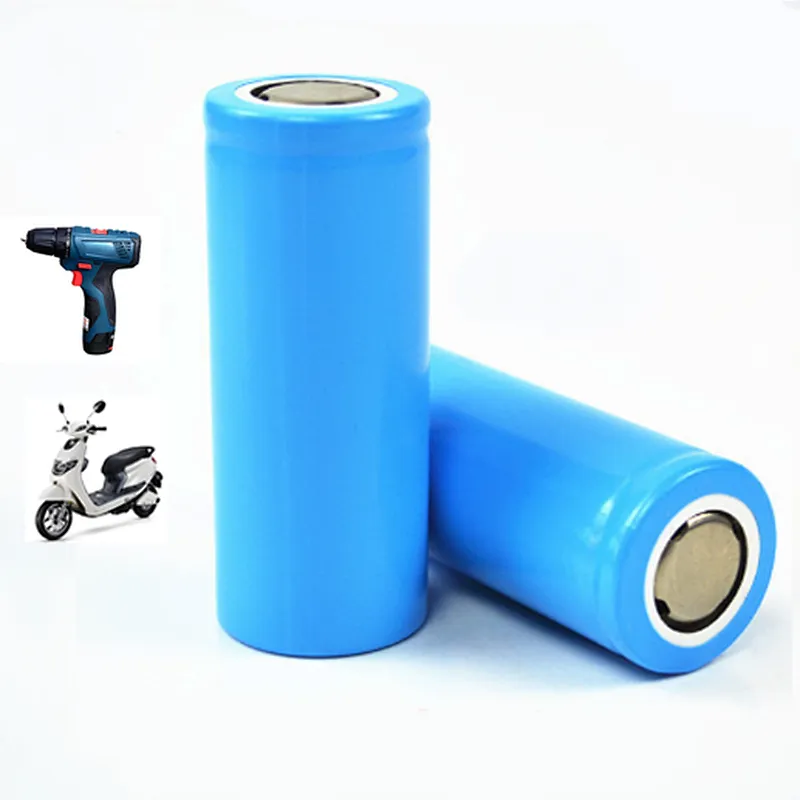

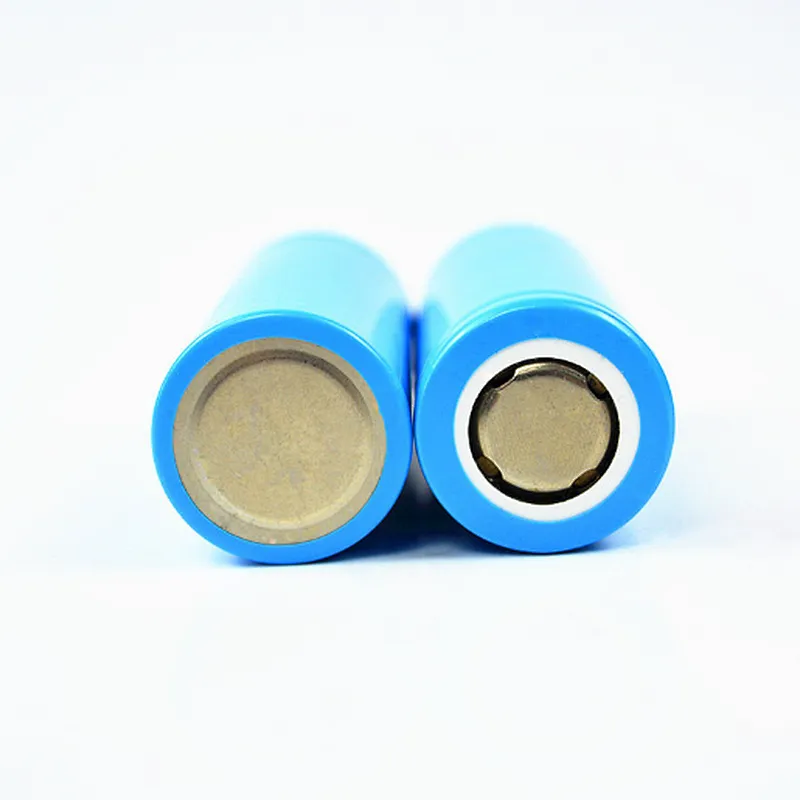

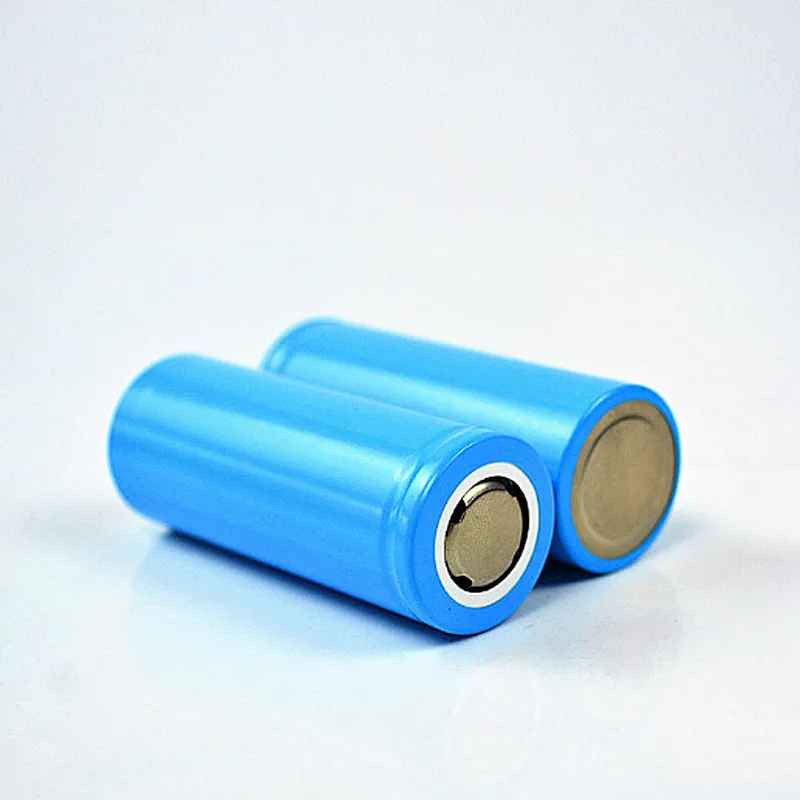

Long Cycle Life 3.2v 32700 Battery Lithium Iron Battery for Ebike

Long Cycle Life 3.2v 32700 Battery Lithium Iron Battery for Ebike

Model NO.: IFR32700 5000mah
Delivery: FOB

Quantity:

Product Description

Material:Li-FePO4
Capacity:5000mah
Voltage:3.2v
Size:32.5*70mm
Discharge current:1C
Package:Industrial Package
Color:blue
Application:Toys
Application:Power Tools
Application:Home Appliances
Application:Consumer Electronics
Application:Golf Carts
Application:Electric Bicycles/Scooters
Application:Electric Folklifts
Application:electric vehicles
Application:Electric Wheelchairs
Application:Electric Power Systems
Application:Solar Energy Storage Systems
Application:Uninterruptible Power Supplies
Place of Origin:CN
Battery Size:32700 battery
Brand Name:Kamcy
Model Number:IFR32700 5000mah
Weight:150g

Long Cycle Life 3.2v 32700 Battery Lithium Iron Battery for Ebike

Specification

Features of 32700 LiFePO4 battery:

1. Capacity: 5000mah
2. Voltage: 3.2v
3. Size: 32.5*70mm
4. Material: lithium iron phosphate
5. Discharge current: 1C
6. Model: 32700 battery

Advantages of 32700 LiFePO4 battery:1.32700 LiFePO4 battery have a long cycle life of more than 2,000 times. Under the same conditions, it can be used for 5 to 6 years.2.32700 battery safe to use. Lithium iron phosphate batteries have undergone strict safety tests and will not explode even in traffic accidents.3.32700 battery charging fast. Using a special charger, the battery can be fully charged after charging at 1.5C for 40 minutes.4.High temperature resistance, hot air value can reach 150 degrees Celsius.5.The capacity of the battery is large.6.There is no memory effect.7.It is environmentally friendly, pollution-free, with a wide range of raw materials and cheap prices.

Customize for your products:

1.Whether needs 2 wires/tabs,and the length of wire/tabs
2.Whether needs protection board
3.How's the size of battery

No.	Item	Condition	Specification
1	Norminal Capacity	0.5 C discharge capacity	5.5Ah
2	AC Impedance	AtAC 1000 Hz	＜12mΩ
3	Nominal Voltage		3.2 V
4	Cell Size	Diameter*Height	(32.2±0.3 mm)*(70.5±0.3 mm)
5	Cell Weight		136±5 g
6	End-of-charge Voltage	CC Mode	3.65v
7	End-of-charge Current	CV Mode	0.275A
8	Charging Method	Standard Charging 0.5C	120 min
9	Charging Method		Max Continuous Charging 1C	60 min
10	End-of-discharge Voltage	CC Mode	2.0 V
11	Max continuous Discharging Current		5.5A
12	Max Pulse Discharging Current		10A
13	Cycle Life	0.5 C/ 100 % DOD	≥1500 cycles
14	Charging Temperature		0~60 °C
15	Discharging Temperature		(-10）~ 60°C
16	Storage Temperature	1 year	(-10）~ 45°C
17	Appearance		Without break, scratch, distortion, contamination, leakage ect.
