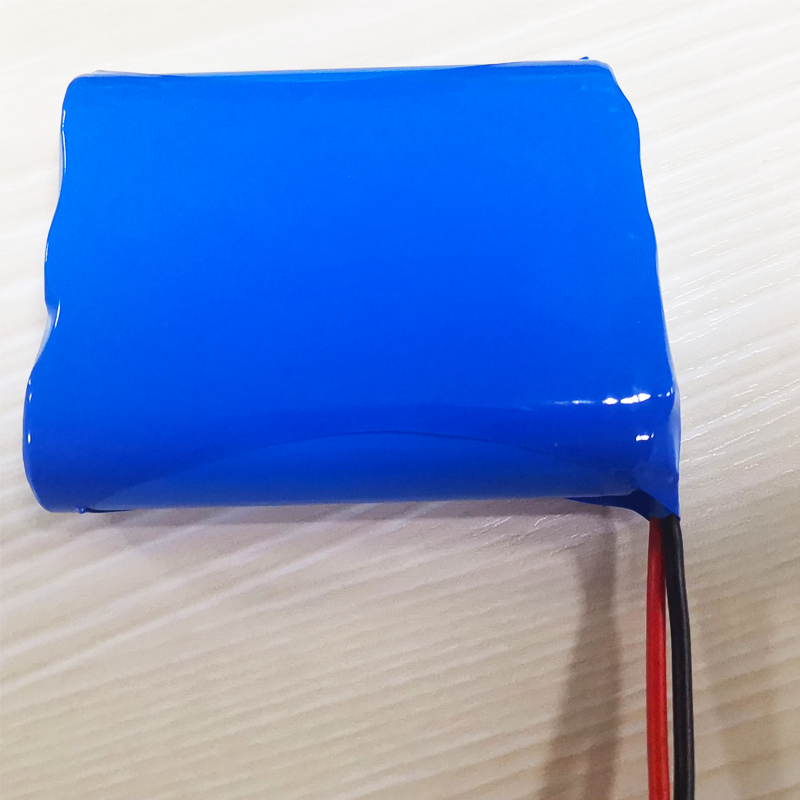

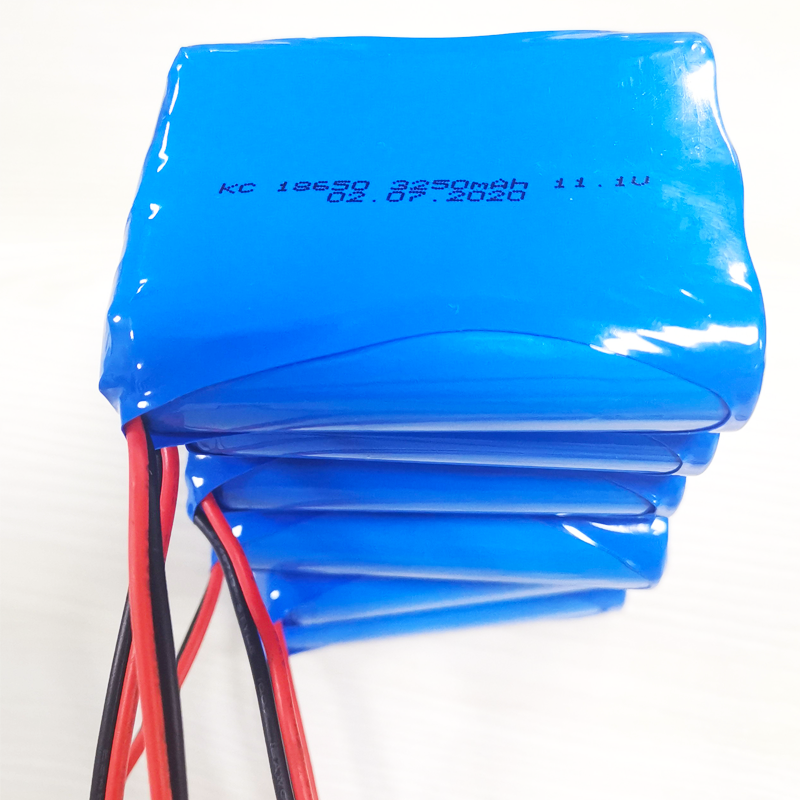

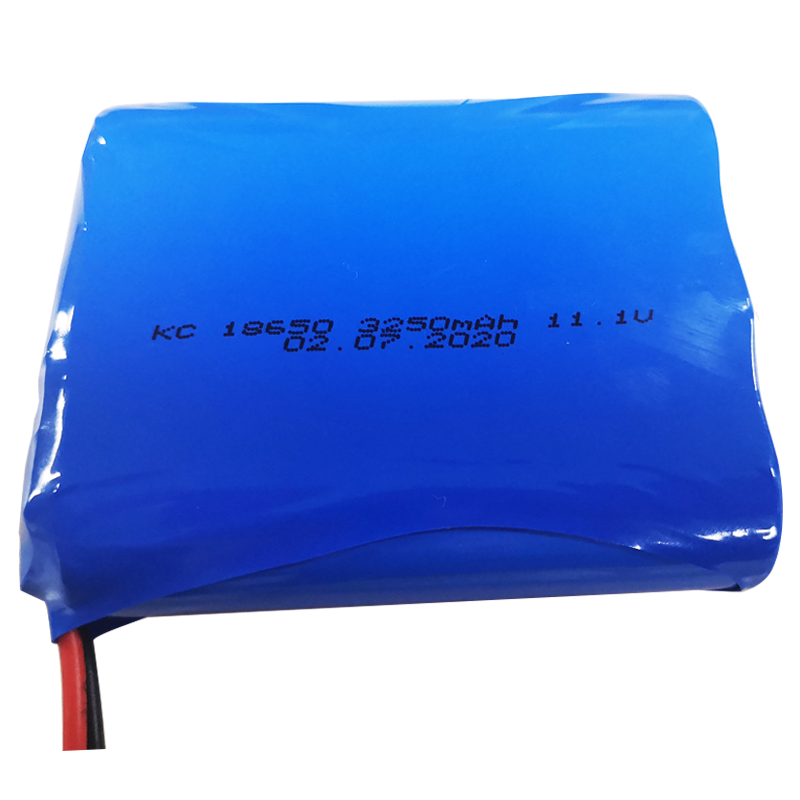

- Capacity:3250mah
- Voltage:11.1v

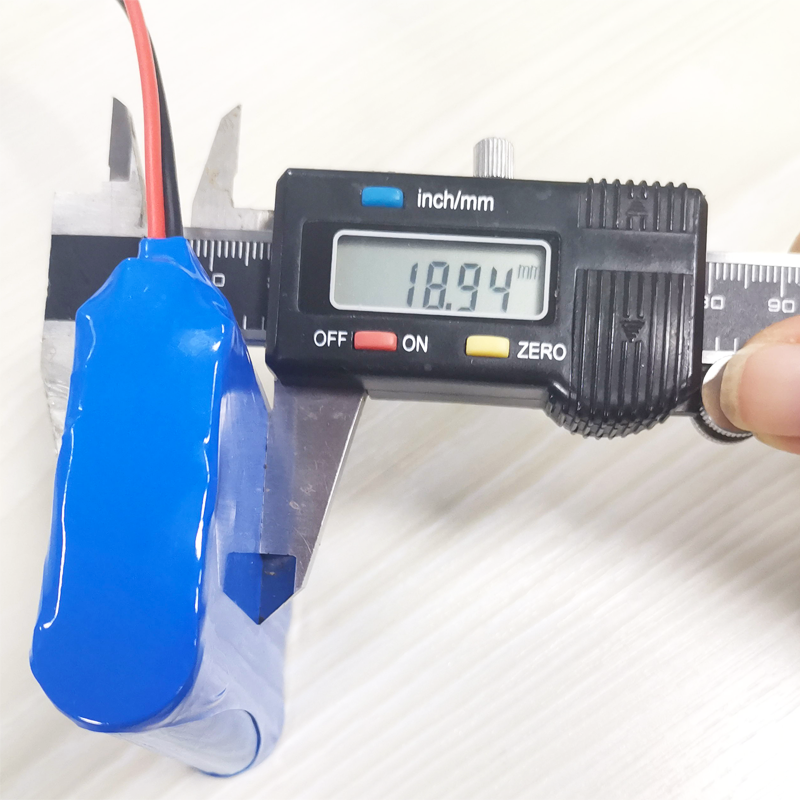

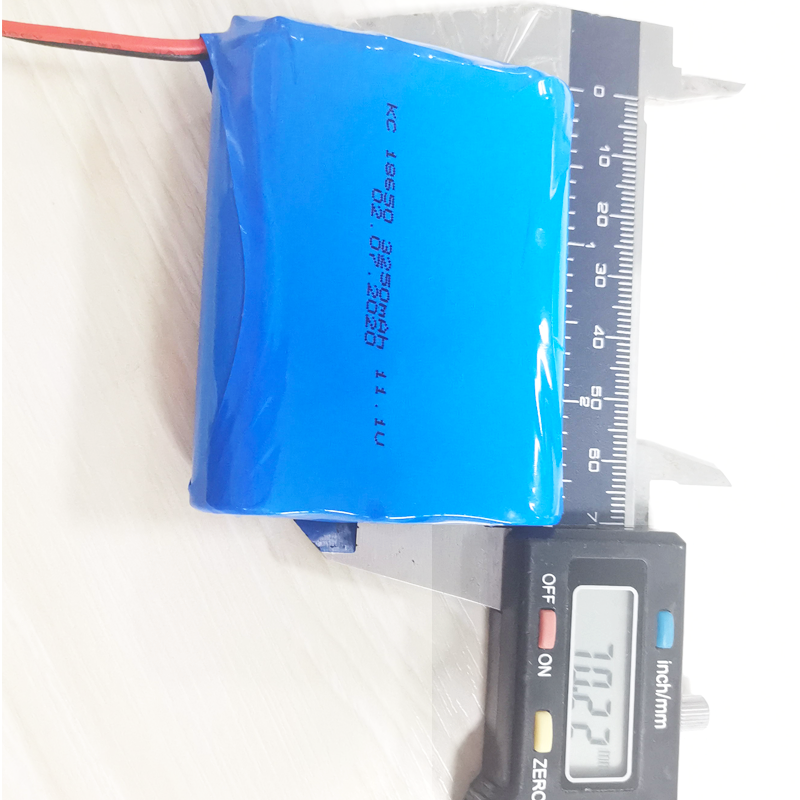

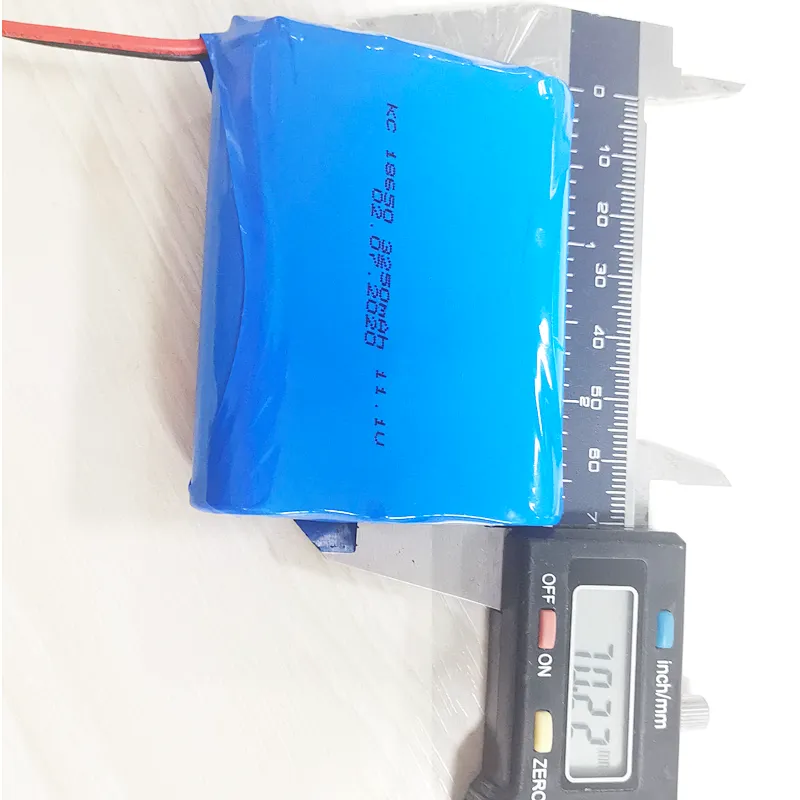

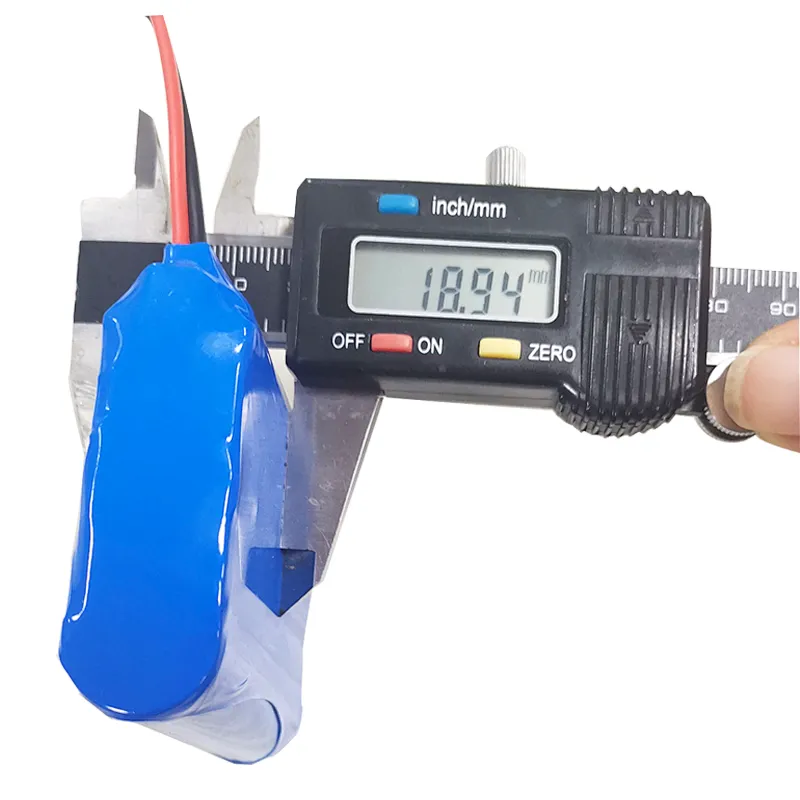

- Size:54*72mm
- Package:Industrial Package
- Color:Blue
- Warranty:3months-1year
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Place of Origin:CN
- Battery Size:18650 battery
- Brand Name:Kamcy
- Model Number:18650 3250mAh 11.1V
- Weight:200g

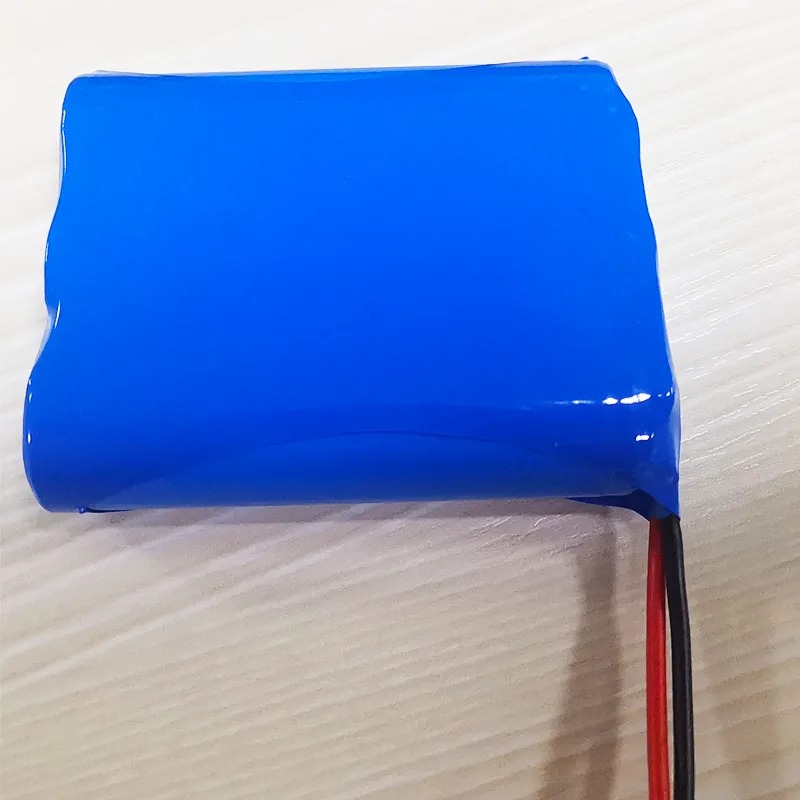

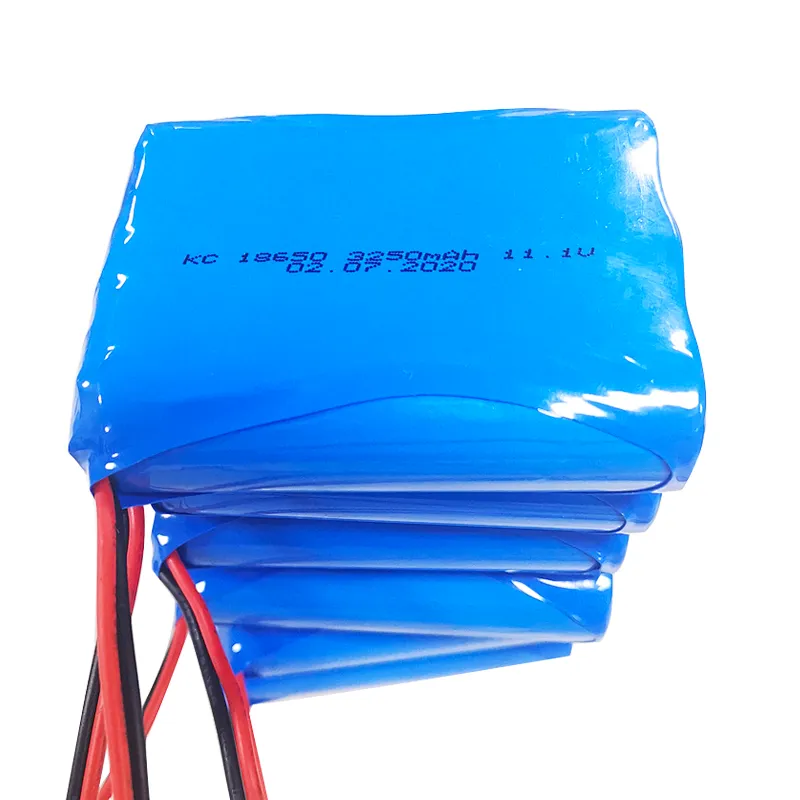

Power Tools Battery 18650 18V 2200mAh 5S1P Battery Pack
Specification
Features:
1.Capacity: 3250mah
2.Voltage: 11.1v
3. Size: 54*72mm
4. Material: lithium ternary
5. Model: 18650 battery
2.Voltage: 11.1v
3. Size: 54*72mm
4. Material: lithium ternary
5. Model: 18650 battery
Advantage of 18650 battery:
1.18650 battery is stable performance
2. 18650 battery has full capacity
3. 18650 battery has long cycle life
4.18650 battery is safe use
5.Overcharge, overdischarge, overcurrent,overvoltage protection circuit
6.Short circuit protection
7.Over temperature protection.
2. 18650 battery has full capacity
3. 18650 battery has long cycle life
4.18650 battery is safe use
5.Overcharge, overdischarge, overcurrent,overvoltage protection circuit
6.Short circuit protection
7.Over temperature protection.
Applications:
Small electric fans Flashlights
Emergency lights Solar cells, Massagers
Electrical equipment Electronic toys
Model aircraft Power tools
Backup power supplies Medical equipment, etc.
Customize for your products:

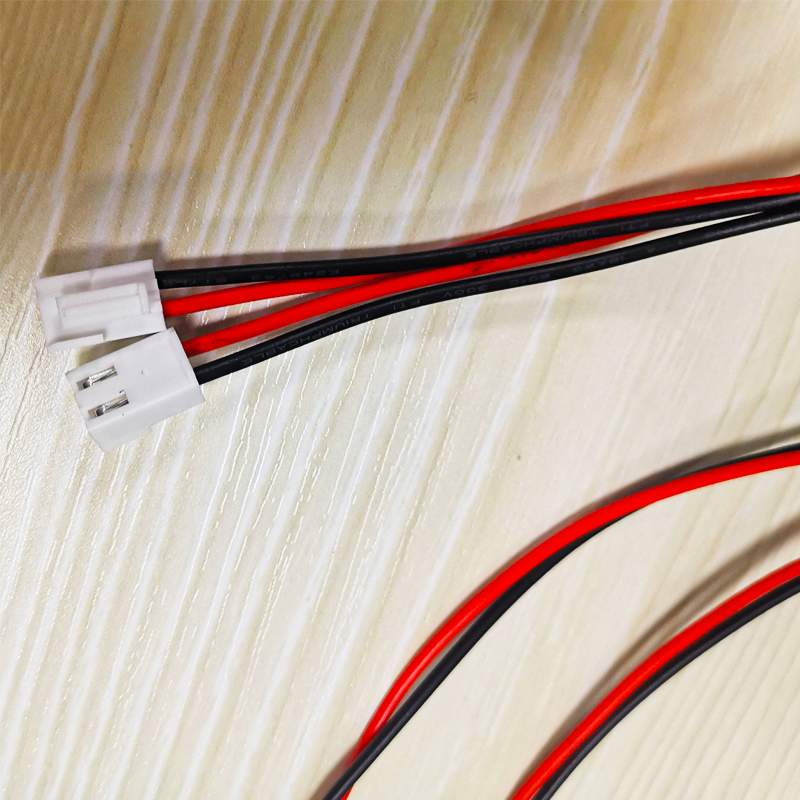

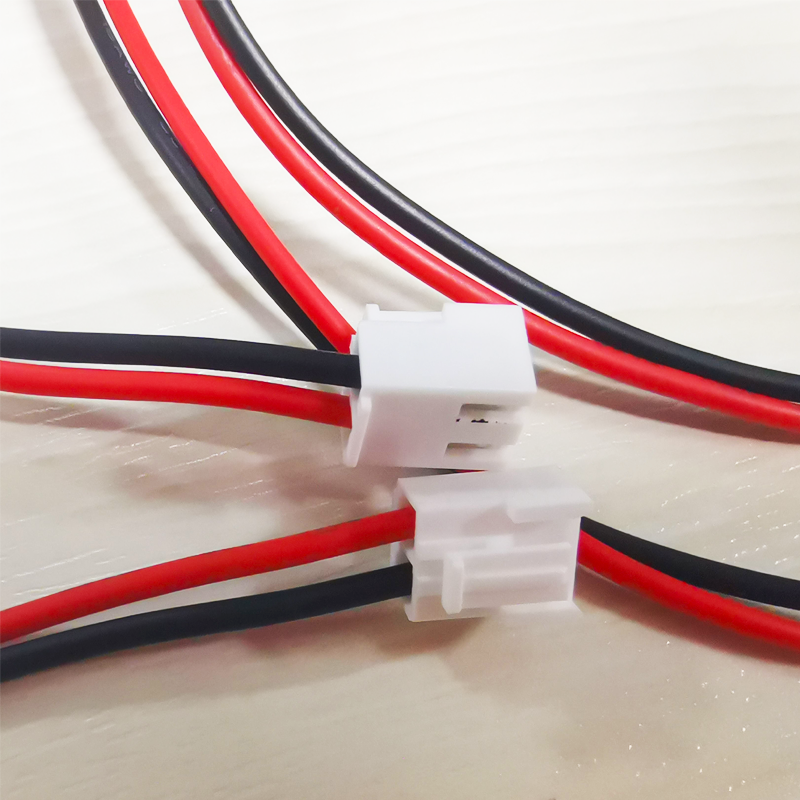

1.Whether needs 2 wires/tabs,and the length of wire/tabs
2.Whether needs protection board
3.How's the size of battery
2.Whether needs protection board
3.How's the size of battery
NO. | Item | Specifications |
1 | Nominal capacity | 3250mAh 0.5C Discharge |
2 | Min capacity | 3150mAh 0.5C Discharge |
3 | Nominal voltage | 11.1V |
4 | Charge current | Standard Charge ：0.2C |
5 | Standard Charging method | 0.2C CC （ constant current ） charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.03C |
6 | Charging time | Standard Charging Approx7.0 hours |
7 | Max.discharge current | Constant current 1C end voltage 2.35V |
8 | Standard Discharge Current | Constant current 0.5 C end voltage2.35V |
9 | Discharge cut-off voltage | 7.2±0.1V |
10 | Charge cut-off Voltage | 12.6±0.05V |
11 | Initial Impedance | ≤150mΩ |
13 | Operating temperature | Charging： 0℃~45℃ Discharging：-10℃~45℃ |
14 | Storage temperature | Approx:-5℃~45℃ |
15 | Storage Humidity | ≤75% RH |
16 | Appearance | Without scratch,distortion,contamination and leakage |
17 | Standard environmental condition | Temperature ： 23±5℃ Humidity : 45-75%RH Atmospheric Pressure ： 86-106 Kpa |
Product Description

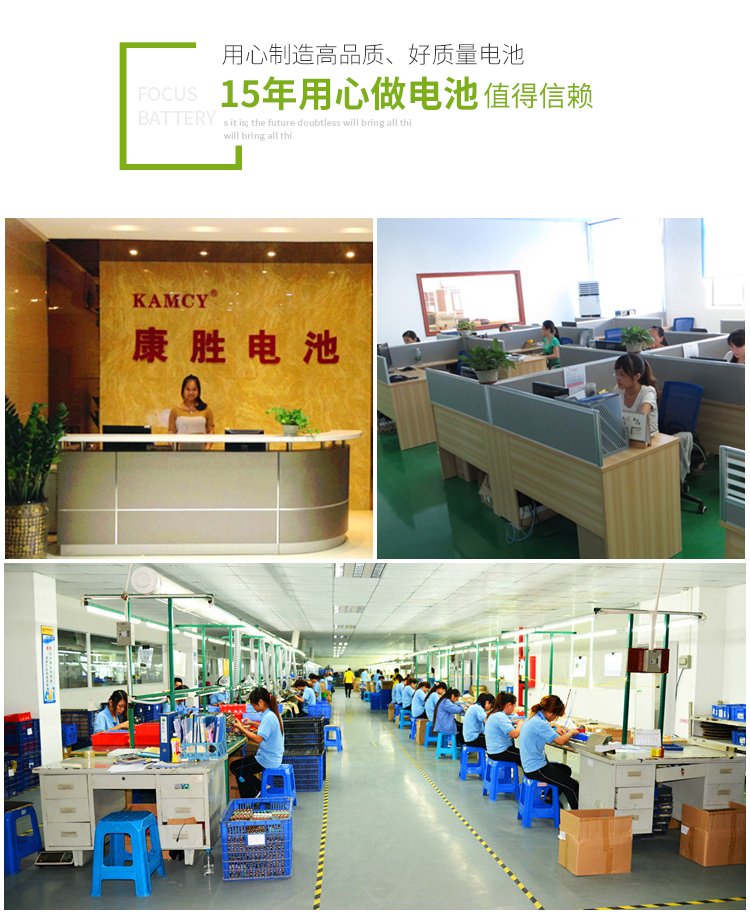

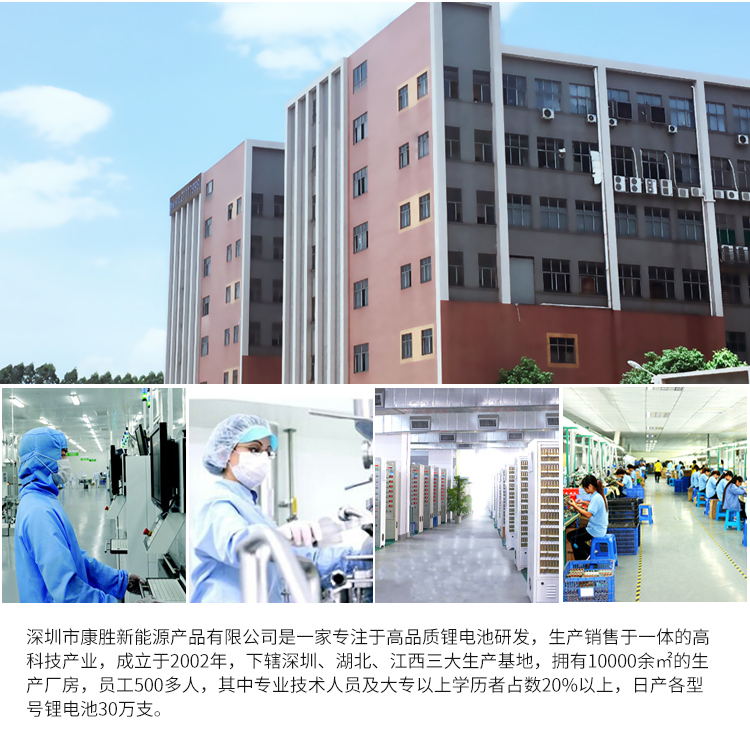

Company Profie
FAQ
Skype: kamcy03
Send Message
Related Products

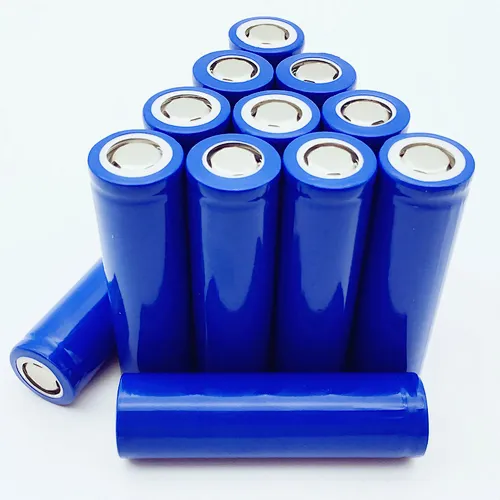

Model NO. KC-18650 2200mah
Model NO. 18650 2600mAh

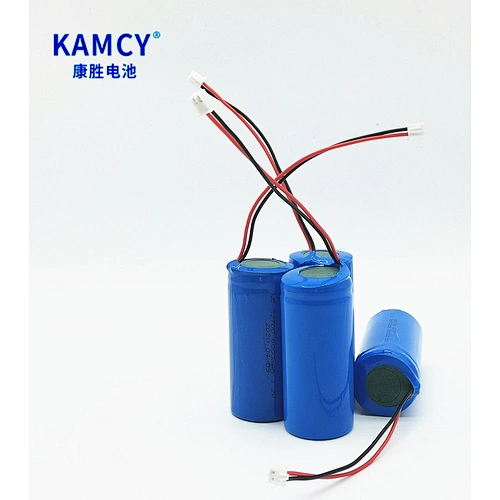

Model NO. KC-32700
Model NO. KC-18650 2600mah
Model NO. 2200mAh 3.7V 18650
Model NO. KC 18650 3.7V 2200mAh

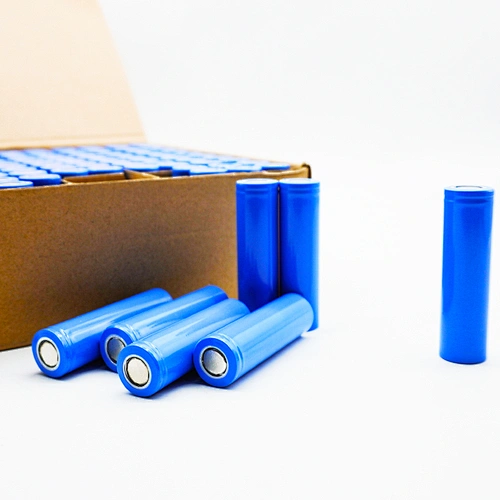

Model NO. 18650 2200mAh

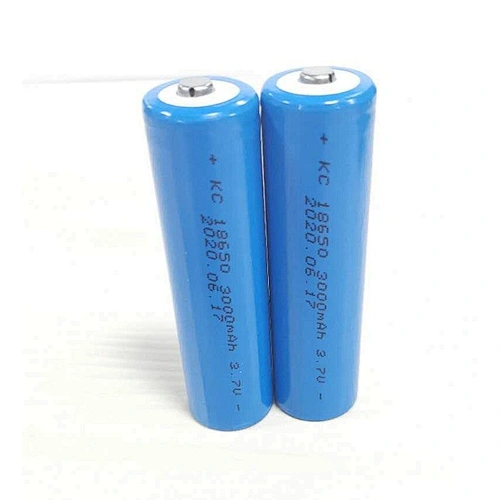

Model NO. KC-18650 3000mAh
